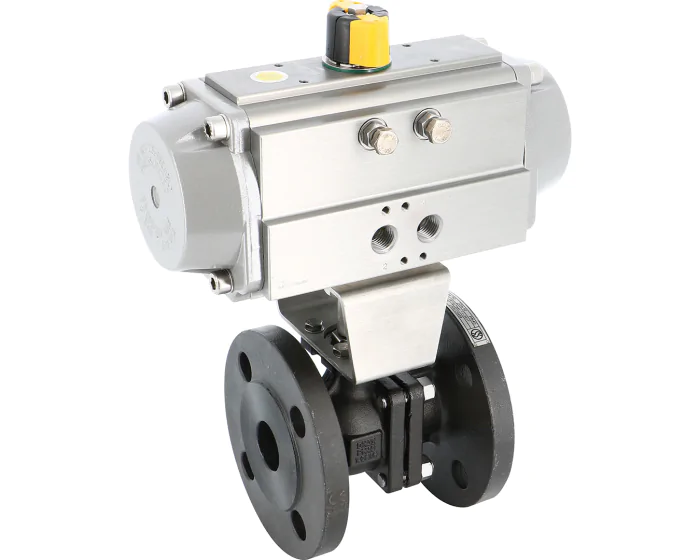

The 505 series ball valve has a cast iron body, stainless steel ball and PTFE seats. It is actuated with a double acting or spring return pneumatic actuator from ALPHAIR. NF 29323 face to face. PS: 16 bar, TS: 200°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | No |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 200.0 |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE |
| Ball material | Stainless steel 304 |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Spring return |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 | 270206017008R | S1000418 |
€364.66
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 | 270206017109R | S1000419 |
€452.44
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' | 270207017008R | S1000420 |
€395.46
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' | 270207017110R | S1000421 |
€572.19
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 | 270208017008R | S1000422 |
€424.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 | 270208017110R | S1000423 |
€584.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' | 270209017009R | S1000424 |
€522.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' | 270209017111R | S1000425 |
€822.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN100 - 4'' | 270210017010R | S1000426 |
€703.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN100 - 4'' | 270210017113R | S1000427 |
€1,211.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN125 - 5'' | 270211017011R | S1000428 |
€976.74
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN125 - 5'' | 270211017114R | S1000429 |
€1,607.07
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN150 - 6'' | 270212017012R | S1000430 |
€1,354.66
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN150 - 6'' | 270212017115R | S1000431 |
€2,466.16
(excl. btw)
|
add to cart |
